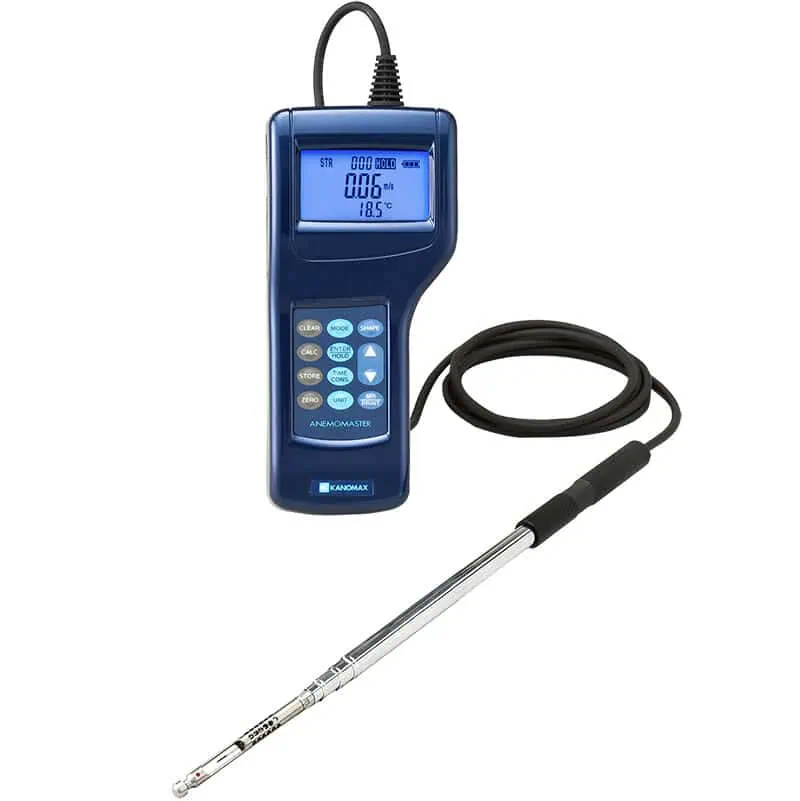

Anemomaster Professional Anemometer – Model 6036

Extendable articulating probe; high-accuracy readings


Request Quote

The Anemomaster™ Professional is an excellent choice for most HVAC applications. Its accuracy rating is 3% m.v. which is equal to our competitor’s high end units. This professional anemometer comes standard with data logging for 1500 records, PC software so you can download and analyze data or prepare a report for a customer, and an articulating telescopic probe that makes it easy to measure at the proper 90-degree angle even for those tricky ceiling ducts.

The unit can also be programmed with several duct sizes and shapes (square, rectangular or round) and then give you volumetric flow rates for those ducts. The unit can be ordered with an optional sensor to measure pressure and analog output option.

The Anemomaster Anemometer Standard model is an affordable alternative for the contractor seeking an economical, but still highly accurate instrument. The articulating probe has been improved with enhanced durability. The modern design flexes easily and will last for many years. The telescoping feature of the probe makes it easy to take traverse measurements at ceiling ducts and other hard to reach places.

Read More

More Information

Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.

  • Simultaneously measures and displays air velocity and air temperature.
  • Telescopic articulating probe makes it easy to take measurements at ceiling ducts and other hard to reach places.
  • Data-logging function with storage capacity of up to 1500 records, which allows users to work longer before pausing to upload data to a PC.
  • Equipped with an automatic atmospheric pressure compensation function.
  • USB connection, easy to upload to your PC or laptop.
  • Highly Visible black-lit display.
  • Make sure you order it with the OPTIONAL OSHA APPROVED Hands-Free Case.
  • NIST TRACEABLE Calibration Certificate.

*Annual NIST TRACEABLE CALIBRATIONS are performed at our facility in ANDOVER, NJ.

Main Specifications
Measurement Specifications
Air Velocity
Range2 to 6000 FPM (0.01 to 30.0m/s)
Resolution1 FPM (0.01 m/s)
Accuracy+/- 3.0% of READING or 0.015 m/s
Temperature
Range-4 to 158°F (-20 to 70°C)
Resolution1°F (0.1°C)
Accuracy+/- 1°F (+/- 0.5 °C)
Range-5 to 5 kPa
Differential Pressure
Range-5 to 5 kPa
Resolution0.01 m/s
0.1 m/s
Accuracy±3% of READING or ±0.01
General Specifications
Analog OutputDC 0 to 3V
InterfaceUSB / Printer
DataloggingStores up to 1500 measurement data
Power Supply6 × AA Batteries or AC Adaptor (AC 100 to 240V , 50/60Hz)
Weight1.1 lbs (500g)
Operating EnvironmentMain body: 41 to 104°F (5 to 40°C) with no condensation
Probe: -4 to 158°F (-20 to 70°C) with no condensation
Storage Environment14 to 122°F (-10 to 50°C) with no condensation
StandardsCE-mark
Warranty2 year
What's IncludedMeter, Operation manual, Carrying case, USB cable,
AA batteries, Data processing Software, NIST certificate

Unit Model6036-0E6036-CE
Telescopic ProbeOO
Articulating ProbeOO
Differential PressureO
Analog OutputO
USB InterfaceOO
Printer InterfaceOO

User Manual

Download

Probe Handling Instructions

Download

Data Sheet - English

Download

Data Sheet - Espanol

Download

Application Note - Anemometer Selection Guide

Download

Application Note - The Relationship Between Air Velocity, Temperature and Pressure

Download

Software - Download

Download

Software - Manual

Download

Kanomax Anemomaster 6036 Probe - Extending & Locking Video Guide

View Video

How do hot-wire anemometers measure air velocity?

They measure the air speed by calculating how fast the probe sensor is being cooled by the airflow.

Aren't all hot-wire anemometers the same? Why should I buy an Anemomaster Professional anemometer?

The principles behind all hot-wire anemometers may be the same, but the quality varies. Simply put, with our temperature compensation sensor, our Anemomaster Professional is highly accurate with an accuracy of +/- 3%. This is due to several factors: 1) We calibrate the temperature compensation sensor, as well as the velocity sensor. Other manufacturers only calibrate the velocity sensor. 2)We use special high-quality materials, like our platinum sensors, that increase accuracy. 3) Our manufacturing facility uses not 1, but 4 specialized wind tunnels to test and calibrate our anemometers. These wind tunnels include a low velocity tunnel, high tunnel velocity and a variable temperature wind tunnel. 4) We’ve been making anemometers for over 80 years. During that time we’ve perfected our knowledge and refined our manufacturing process to produce a research-grade instrument.

Does the unit come with an NIST traceable certificate?

Yes, all our instruments come with a calibration certificate.

How often does the unit need to be calibrated?

Kanomax recommends annual calibration to ensure accuracy.

What kinds of airflow can I measure with my Kanomax anemometer?

You can measure clean air between -4 and 158°F (-20 to 70°C) in an environment with no visible condensation. (Please note: the temperature range given is for the probes).

Can I measure airflow in flammable and corrosive gases?

No, these are thermal anemometers that generate heat when in operation; if you expose them to a flammable gas it could cause a fire or explosion. Corrosive or caustic gases, such a chlorine, will damage the sensor on contact. While it is possible to use the instrument in a non-flammable, non-caustic gases the instrument is not calibrated for these gases and it will not measure airflow accurately.

I bought a Anemomaster Professional anemometer. Can I add the analog and/or pressure options?

No. Unfortunately these options are built into the main unit and must be ordered with the unit. They cannot be added later.

Which operating systems is the software compatible with?

Windows XP (32-bit only), Vista, Windows 7 and Windows 10. (Please Note: Anemomaster Professional comes with software. It is available as an option for the Climomaster.)

What is included with the Anemomaster Professional unit?

The unit ships in a hard carrying case and includes a meter with probe, 6 x AA batteries, and a NIST traceable calibration certificate.

I have a challenging application. How can I be sure the Kanomax Anemomaster Professional will fit my needs?

Give us a call! Our customer service team is happy to discuss your application and find a solution that works for you. We won’t sell you a product that doesn’t meet your needs.
