Cabin Leakage Tester

Interior cabin tester for efficient automobile manufacturing

Request Quote

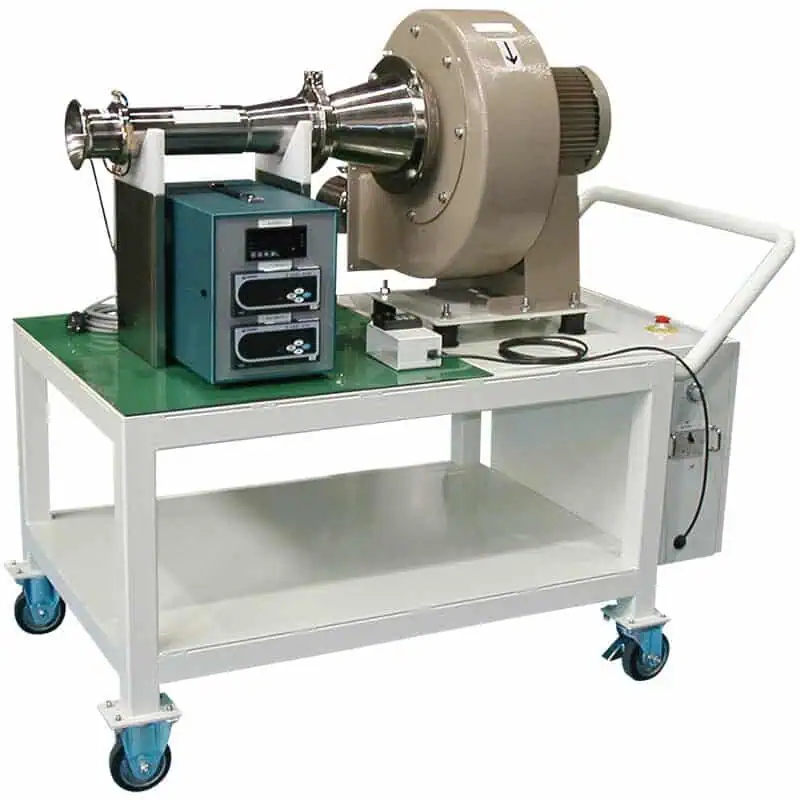

The Kanomax Cabin Leakage Tester pressurizes or depressurizes the automobile vehicle cabin to measure the changes in cabin pressure. The control unit consists of a manometer and pressure transducers. The manometer detects the leakage flow, which is calculated by measuring the nozzle pressure relative to static pressure. The tester controls an adjustable fan to maintain static test pressure.

More Information

Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.

  • Applicable for non-conductive fluid.
  • Signal processor is available for option.
  • Includes LDV probe with cable, Smart LDV driver, BNC-BNC cable, Interlock connector, probe support block, retro reflect unit, RS232C cable, power vable, and probe case.
  • Non-contact velocity measurements.
  • Wind tunnel studies.
  • Measurements in combustion, combustor.

Main Unit Specifications
Airflow Ranges100 to 500 m3/hour
Maximum Static Pressure300 Pa
Nozzle Diameter41 or 69 mm
Power SupplyAC100V, 20A, Single phase
StandardsJIS D1622
JIS B 8330
