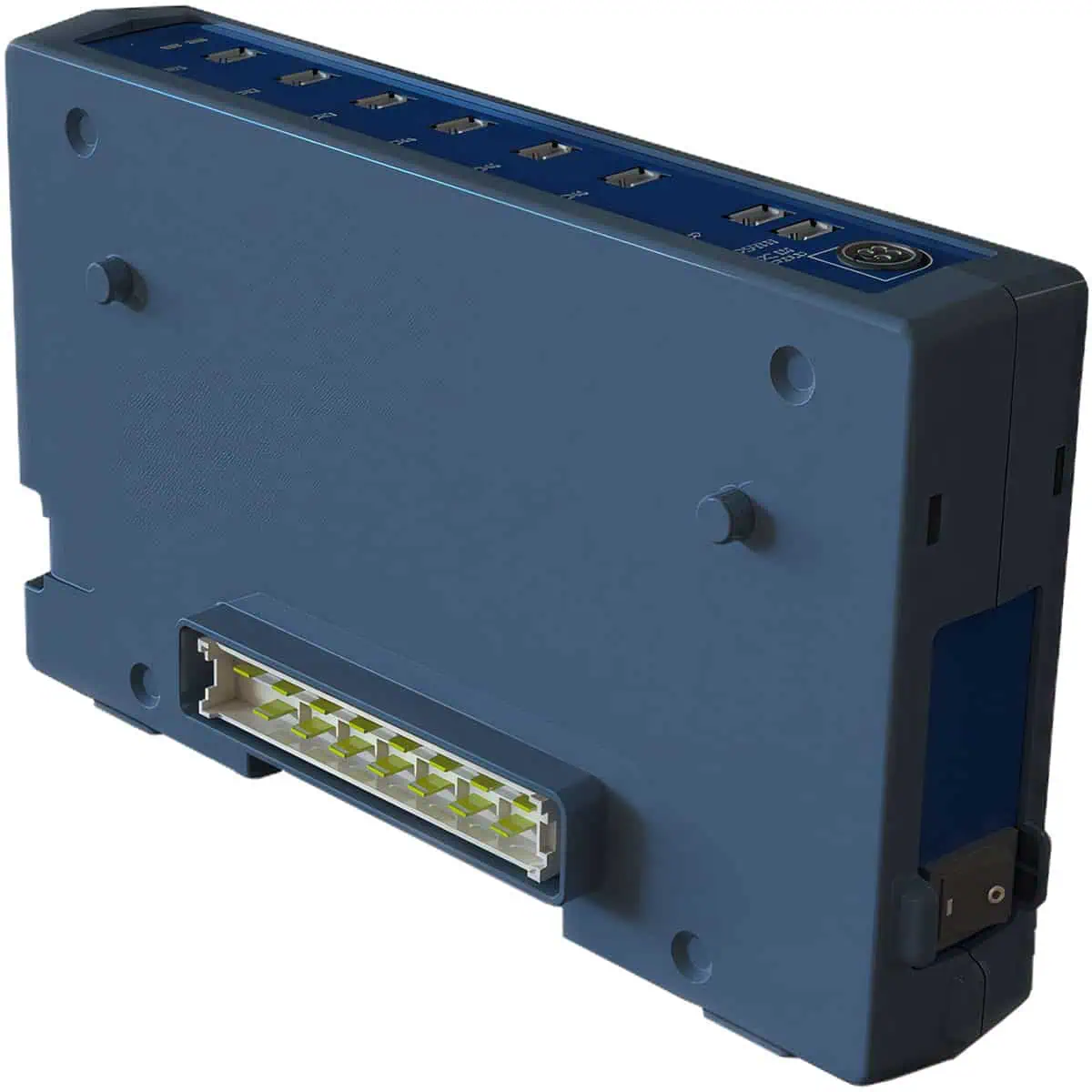

High Temperature Multi-Channel Anemomasters PRO & PRO PLUS – Models 1595/1596
Measure high temperature airflow via multiple channels and probe types
The Kanomax High Temperature Multi-Channel Anemomaster PRO and PRO PLUS – Models 1595/1596 are engineered to deliver superior air velocity and temperature measurements in environments reaching up to 500℃. These advanced models are designed to perform accurately in extreme conditions, using unique high-temperature wind tunnels for calibration and ensuring temperature compensation accuracy. With the capacity to handle up to 72 channels, they are ideal for large-scale facilities requiring precise airflow analysis.
Advanced Measurement Capabilities and Easy Installation
Both the Model 1595 and 1596 anemometers are capable of measuring air velocity up to 50.0 m/s and temperatures as high as 500℃. These units feature high portability and user-friendly interfaces, including touchscreen operations that simplify the setup and use in various industrial locations. The systems are built to support extensive configurations, making them versatile for different application needs, from furnaces and ovens to thermal test chambers.
Durable and Reliable System Configuration

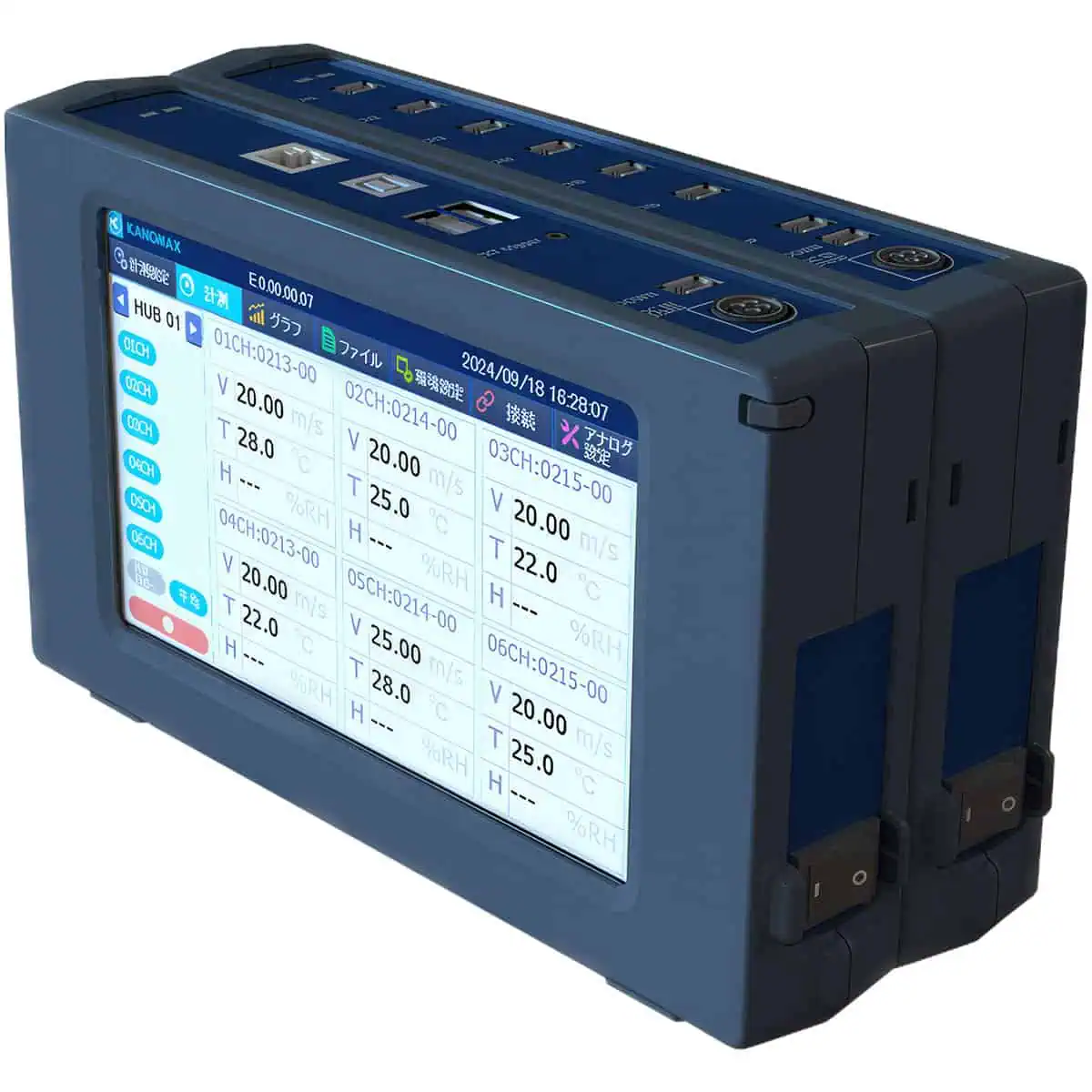

These anemometer models are designed to be robust and reliable, with the ability to expand system configurations up to 72 channels. The main units can be paired with multiple hub units, allowing for flexible and expansive system setups. The integration of durable probes and cables ensures that the systems can withstand the demanding conditions of high-temperature environments.
Enhanced Data Management and Connectivity
The Kanomax Models 1595/1596 come equipped with PC software compatible with Windows 11, facilitating real-time monitoring and graph display of all channels. Measurement data is saved in text format for easy import to applications such as Excel. The units offer multiple communication interfaces, including USB and LAN, and provide analog outputs via the Analog Unit Model 1592-0G, making them ideal for data collection using data loggers.
Tailored for Harsh Industrial Applications
Specifically designed for harsh industrial applications, these anemometers are best suited for testing airflow in environments like furnaces, ovens, and thermal test chambers where standard devices cannot operate. The ability to mix ambient and high-temperature probes provides a wide measurement range, ensuring comprehensive monitoring across various industrial processes.
Reliable Tool for High-Temperature Monitoring
The Kanomax High Temperature Multi-Channel Anemomaster PRO and PRO PLUS are essential tools for industries that operate at high temperatures and require reliable and accurate airflow measurement. With their robust construction, advanced technology, and ease of use, these models offer a significant advantage in optimizing and controlling industrial environments.
More Information
Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.
- High Temperature Capability: Capable of measuring air velocity and temperature in environments up to 500°C.
- Multi-Channel Monitoring: Ability to build large systems with a maximum of 72 channels, making it suitable for extensive facilities.
- High Portability: Easily installable in various types of locations due to its compact and mobile design.
- Dual Output Options: Supports output of measurement data via both voltage and current outputs for versatile application.
- Touchscreen Operation: Features a user-friendly interface with a touchscreen that simplifies setup and operation.
- Precision and Accuracy: Utilizes a high-temperature wind tunnel for calibration, ensuring accurate temperature compensation.
- Versatile Installation: Its high portability and various interfaces allow for easy measurement across many points in large-scale facilities.
- Comprehensive Data Management: Comes with PC software compatible with Windows 11 for real-time monitoring and data logging, with easy data export to Excel.
- Robust System Expansion: Supports expansion to a maximum of 12 units of Analog Unit (Model 1592-0G), allowing up to 144 channels for complex configurations.
- Ideal for Harsh Environments: Best suited for testing air flow in furnaces, ovens, and thermal test chambers, where standard monitoring systems might fail.
- Furnace Monitoring: Ideal for measuring and analyzing airflow in high-temperature furnaces to ensure operational efficiency and safety.
- Oven Airflow Testing: Used to monitor and optimize airflow in industrial ovens, critical for maintaining consistent temperature distributions and product quality.
- Thermal Test Chambers: Provides accurate monitoring of air velocity and temperature in thermal test chambers used for material testing or product endurance.
- Industrial Process Control: Helps in controlling and optimizing industrial processes that require precise temperature and airflow conditions.
- Drying process control
- Forming process control
- Exhaust air measurement
- Device performance testing
- ISO 13579 energy efficiency testing
- NFPA 86 testing for industrial ovens
Main Units Specifications
| Product | High Temperature Multi-Channel Anemomaster PRO PLUS | High Temperature Multi-Channel Anemomaster PRO | |
|---|---|---|---|
| Model | 1596-0G | 1595-0G | |
| Display | 7-inch color touchscreen | ||
| Communication Interface | Data Storage | USB Type-A (for USB Memory) | |
| PC Communication | Ethernet & USB, Protocol: Modbus RTU, Modbus TCP/IP | ||
| Between Units | Serial communication (standard cable or connector) | ||
| Recording Media | Medium | Built-in memory | |
| Format | CSV format | ||
| Storage | 8GB (One hub unit can measure 1000 sampling times, about 24500 times). | ||
| External Trigger Input | Dry Contact Input (A contact), Pin Jack Terminal Φ2.5 | ||
| Language | English, Japanese, Chinese | ||
| Power Supply | DC12~24V (Selectable from either one one of the 3 options below (NOTE: common in Hub Unit and Analog Unit) (1) Supplied from the other unit via connector (2) AC adaptor (90W or 160W) (3) DC power cable |
||
| Power Consumption | 10W | ||
| Connectible Units | Hub Unit (Model 1593-0G), Analog Unit (Model 1592-0G) Hub Unit (Model 1591-0G) | Hub Unit (Model 1593-0G), Analog Unit (Model 1592-0G) | |
| Dimensions | W220mm × D130mm × H40mm | ||
| Weight | 0.6 kg | ||
| Standard Accessories | AC adaptor (90W), USB Cable, Stylus Pen, Rubber Cap, PC Software | ||
| Warranty | 1 year | ||
Hub Unit Specifications
| Product | High Temperature Multi-Channel Anemomaster HUB Unit | ||
|---|---|---|---|
| Model | 1591-00 | ||
| Number of Channels | 6ch | ||
| Communication Function | Between Probes | Serial communication (standard cable) | |
| Between Probes | Serial communication (standard cable, connector) | ||
| Power Supply | DC12 ～ 24V | ||
| Power Consumption | Max 50W | ||
| Dimensions | W220mm × D130mm × H40mm | ||
| Weight | 0.5 kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs) | ||
| Warranty | 1 year | ||
Analog Unit Specifications
| Product | Analog Unit | ||
|---|---|---|---|
| Model | 1592-00 | ||
| Number of Channels | 12 | ||
| Communication Function | Between units | Serial communication {connector} | |
| Analog Output | Voltage output | Range | 0 ～ 5 V |
| Output resistance | 1 kΩ | ||
| Current output | Range | 4 ～20 mA | |
| Load resistance | 250 Ω | ||
| Power Supply | DC12 to 24V (Select either one of 3 options below) 1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable |
||
| Power Consumption | 10W | ||
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | ||
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) | ||
| Size | W220mm × D130mm × H40ｍｍ | ||
| Weight | 0.5kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs), Rubber cap (2pcs), Terminal block (3pcs) | ||
| Warranty | 1 year | ||

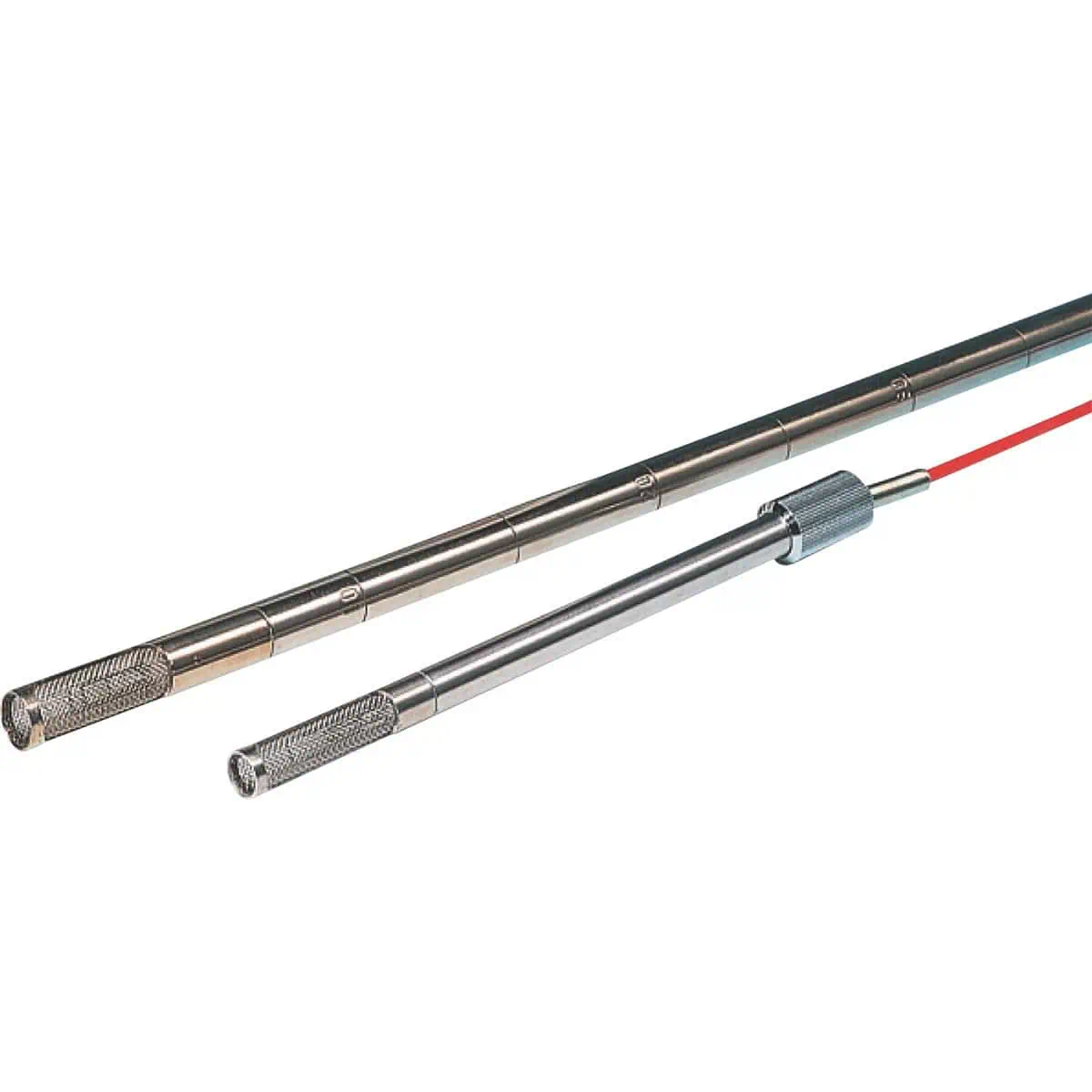

Probe Specifications
| Model | 0213-00 | 0214-00 / 0215-00 | ||
|---|---|---|---|---|
| Measuring Range | Air velocity: V0~50.0 m/s V0 =0.2 m/s: 0～99℃ V0 =0.4 m/s: 100~200℃ | Air velocity: V0~50.0 m/s V0 =0.2 m/s: 0~99℃ V0 =0.4 m/s: 100~199℃ V0 =0.7 m/s: 200~299℃ V0 =1.0 m/s: 300~400℃ |
||
| Measuring Accuracy | Measuring Range | Accuracy | Resolution | |
| Air Velocity | V0~4.99 m/s | ±0.15 m/s | 0.01 m/s | |
| 5.00~9.99 m/s | ±0.3 m/s | |||
| 10.0~24.9 m/s | ±0.75 m/s | |||
| 25.0~50.0 m/s | ±1.5 m/s | |||
| Temperature | 0~99.9℃ | ±(1% of reading +1℃) | 0.1℃ | |
| 100~199℃ | ||||
| 200~500℃（0214/0215） | ||||
| Temp. Compensation Accuracy (Air Velocity) | Temperature / Air Velocity | MODEL 0213-00 | MODEL 0214-00/0215-00 | |
| 0~200℃ | 0~400℃ | |||
| V0~4.99 m/s | ±0.5 m/s | ±0.75 m/s | ||
| 5.00~9.99 m/s | ±0.6 m/s | ±1.0 m/s | ||
| 10.0~24.9 m/s | ±1.5 m/s | ±2.5 m/s | ||
| 25.0~50.0 m/s | ±3.0 m/s | ±5.0 m/s | ||
| Responsiveness | Air velocity: 4sec, Temperature: 6sec (NOTE: 90% response at 5m/s air flow) | |||
| Cable Length | TeflonTM-coated wire: 3m | |||
| Cable Operating Temperature | TeflonTM-coated wire (probe side): 200℃ Probe converter box: 60℃ |
|||
| Dimensions | Φ11 x 178 mm (NOTE: cable and connector are not included) | 0214-00: Φ14 x 1000 mm 0215-00: Φ14 x 500 mm (NOTE: cable and connector are not included) |
||
| Weight | 250g | 550g (0214-00), 400g (0215-00) | ||
| Accessories | Probe carrying case (1pcs) | Probe carrying case (1pcs) | ||
- Hub Unit: Model 1593-0G
- Analog Unit: Model 1592-00
- Medium Temp Probe: Model 0213-00
- High Temp Probe (Long): Model 0214-00
- High Temp Probe (Short): Model 0215-00
- Compression Fitting for 0203: Model 6162-07
- Compression Fitting for 0204/0205: Model 6162-06
- Spare AC Adaptor (90W): Model 1580-10
- Spare AC Adaptor (160W): Model 1590-11
- DC Power Connection: Model 1580-37
- Main Units Cable (0.5m): 1580-30
- Main Units Cable (2m): 1580-31
- Main Units Cable (5m): 1580-32
- Main Units Cable (10m): 1580-33
- Main Units Cable (20m): 1580-34
- Main Units Cable (40m): 1580-35
- Probe Cable (0.5m): 1593-30
- Probe Cable (2m): 1593-31
- Probe Cable (5m): 1593-32
- Probe Cable (10m): 1593-33
- Probe Cable (20m): 1593-34
- Probe Cable (40m): 1593-35
