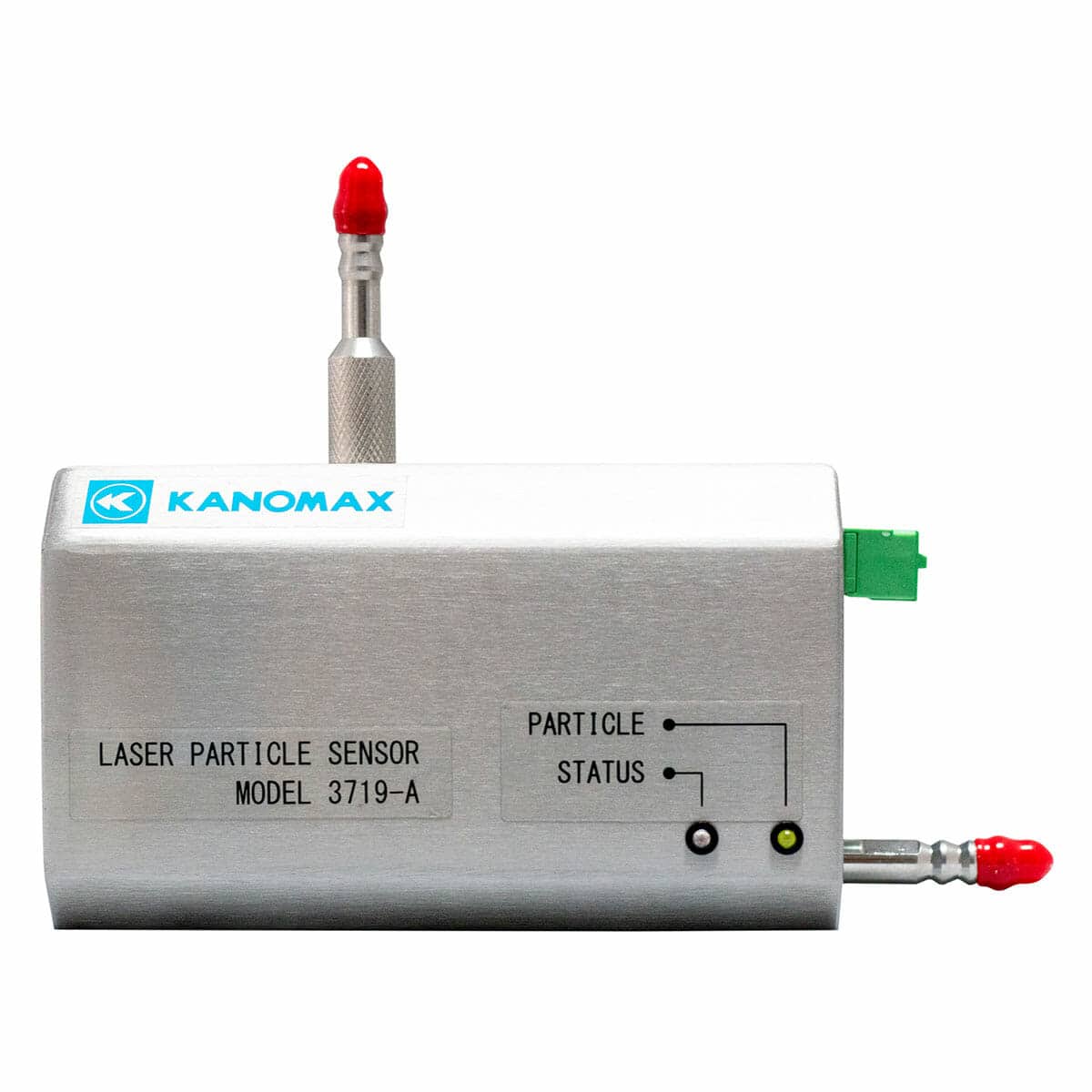

Remote Particle Sensors – Models 3718-A and 3719-A

Remote particle sensors with analog output

Request Quote

Kanomax Remote Particle Sensors with analog output are designed to fit into your existing monitoring system, or they can be used as a stand-alone unit to monitor a critical area when connected to an alarm or controller. With two models available, these 2-channel remote particle sensors are capable of Modbus communication via RS485 interface. 0.1 cfm and 1.0 cfm flow rate models are available, along with flexible 4-20mA analog output with the 1.0 cfm unit (only).

These particle sensors output particle counts, error statuses and alarm signals, and are able to connect to a PLC or data logger for facility monitoring applications. They can be easily added to a process or building automation system. Fully compliant with ISO21501-4 calibration standard and JIS B9921.

More Information

Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.

  • 2-channel particle sensor with Modbus communication via RS485 interface
  • Flexible 4-20mA analog output (1.0 cfm unit only)
  • 0.1 cfm and 1.0 cfm flow rates are available
  • Outputs particle counts, error status and alarm signal

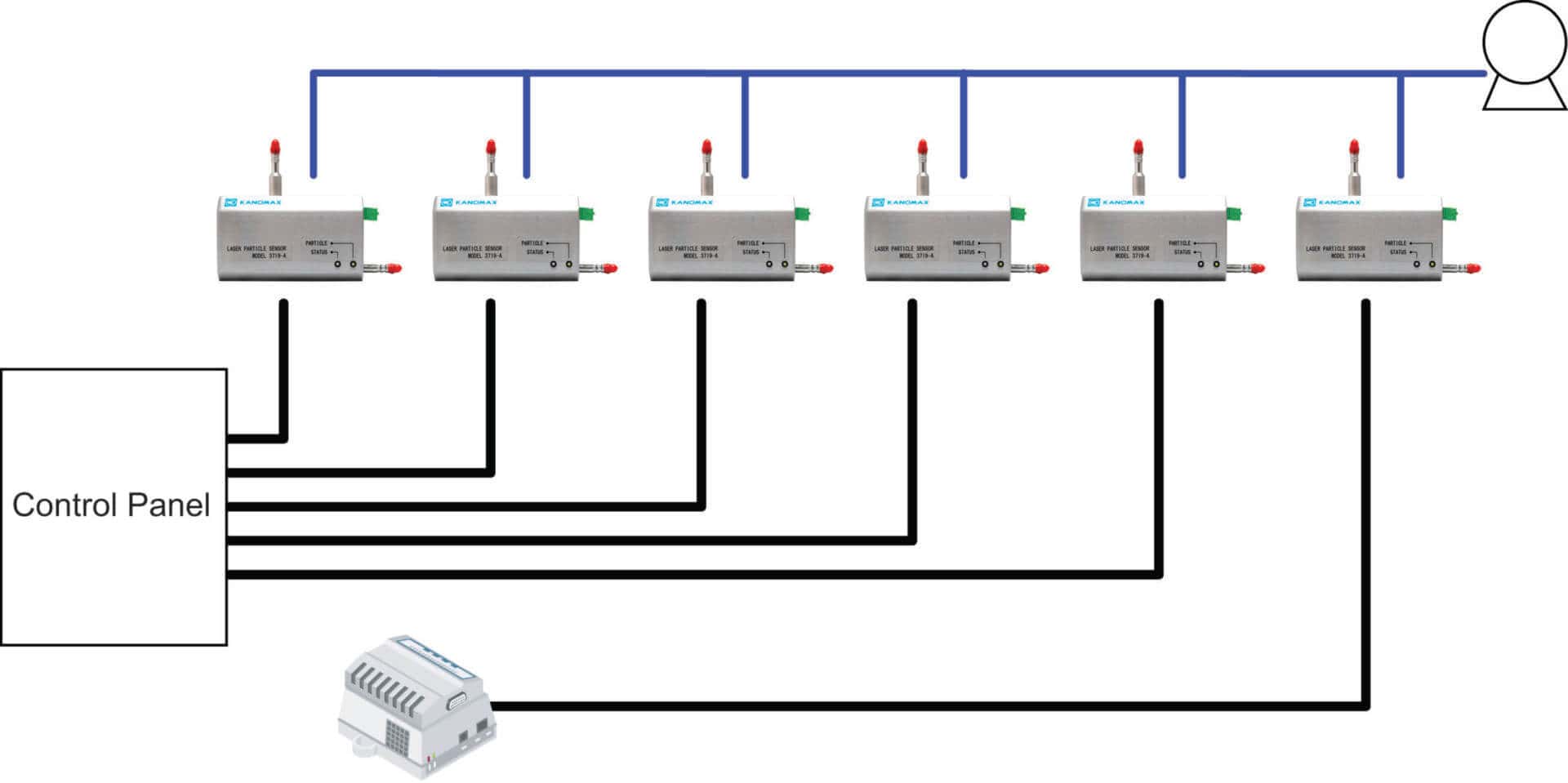

  • Able to connect to a PLC or data logger for facility monitoring applications
  • Can be added to a process or building automation system
  • Fully compliant with ISO21501-4 calibration standard and JIS B9921
  • Configuration software is included for easy user parameter setup
  • Power can be provided via a network connection or AC adaptor
  • Stainless steel housing
  • 3-year warranty included
  • Cleanroom Facility Monitoring
  • Food Industry
  • Aerospace
  • Hospital Surgical Rooms

Main Unit Specifications
Measuring Particle Size3718-A: 0.3µm and 0.5µm; 3719-A: 0.5µm and 5.0µm
Counting Efficiency50% +/- 20% at smallest particle channel
Coincidental LossLess than 10% at 500,000 particles/cf
Zero CountLess than 1 count / 5 minutes
General Specifications
Flow Rate1.0 cfm (28.3 l/min)
Light SourceLaser diode
InterfacesRS485 (Modbus capability); Analog output (4-20mA)
EnclosureStainless steel
Power SupplyDC24V (over network hub) or 9 to 28V (AC adapter)
OutputParticle counts, error status, alarm output
Vacuum SourceExternal pump
Operating Environment10 to 30°C (50 to 86°F)/20 to 85%RH with no condensation
DimensionsW 5.2 x D 3.7 x H 3.1 inch (133 x 95 x 80 mm)
Weight2.2 lbs (1.0 kg)
StandardsISO21501-4, JIS B9921, CE-mark
Warranty3 year
Standard AccessoriesUser’s Manual – English (1), User’s Manual – Japanese (1), AC adapter (1), Zero filter (1), Adapter 1 (1), Adapter 2 (1), Tygon tube 1 (1), Setting software DVD – 3718/19-40 (1)

User Manual (English)

Download

Data Sheet (English)

Download

  • 3910 Zero Filter: Model 3910-04
  • Product Configuration Adapter
  • Isokinetic Air Sampling Probe
  • Vacuum Pump
