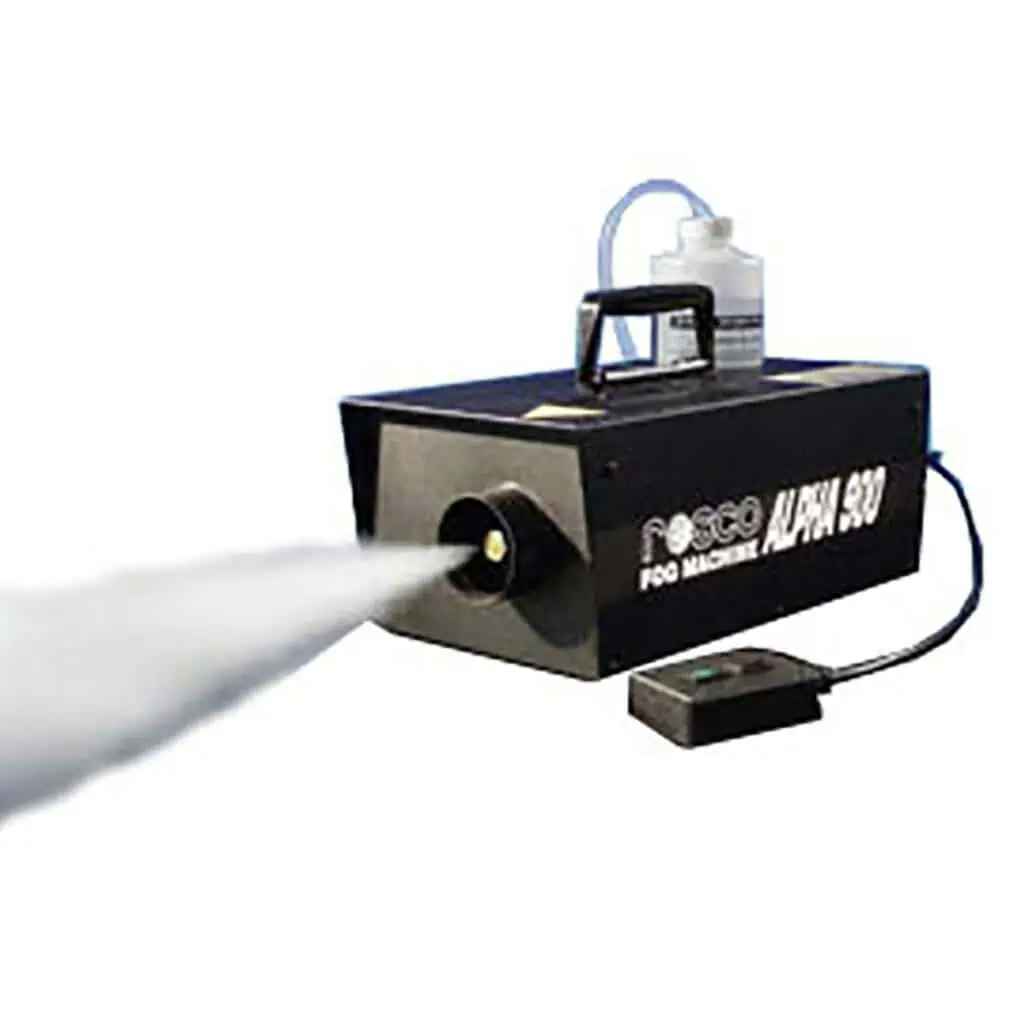

Fog Machine – Models AL900 & Hazer Pro

For fume hood testing and automobile testing

Request Quote

The Model AL900 and Hazer Professional are each economical fog machines, excellent for applications such as combine with the Kanomax tracer gas testing DIF-Kit. A simple on-off switch (in remote control mode only) initiates a remarkably powerful blast of smoke. The output from the 1000 watt heater of this compact machine is truly remarkable.

NOTE: The Flow Visualization and velocity procedure test standard (ANSI/ASHRAE 110-1995 section 6) is a visualization test used to determine hood ability to contain vapors. A visible smoke is introduced in a manner that is consistent in a way the hood is typically used. See ANSI/ASHRAE 110-1995 section 6 for a complete description of testing procedures.

More Information

Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.

  • Large volume fog machine
  • Accepts all Rosco fog fluids
  • Fume hood testing
  • Ventilation testing

Main Unit Specifications
Power Requirements120 volts, 50/60 hz, 10 amps
220/240 volts, 50/60 hz, 5 amps
Particle Size0.25 – 60 microns
Warm-Up Time5 minutes (approx.)
Dimensions14.4″ x 6″ x 8″
36.6 cm x 15.25 cm x 20.3 cm
Weight11.4 lbs., 5.2 kg
Max Consumption1 liter per hour
16 ml per minute
Fuse Type120 250/10A
240 volt-5A

User Manual


Data Sheet - English


Data Sheet - Material Safety Data Sheet


  • Fog Machine Fluid
