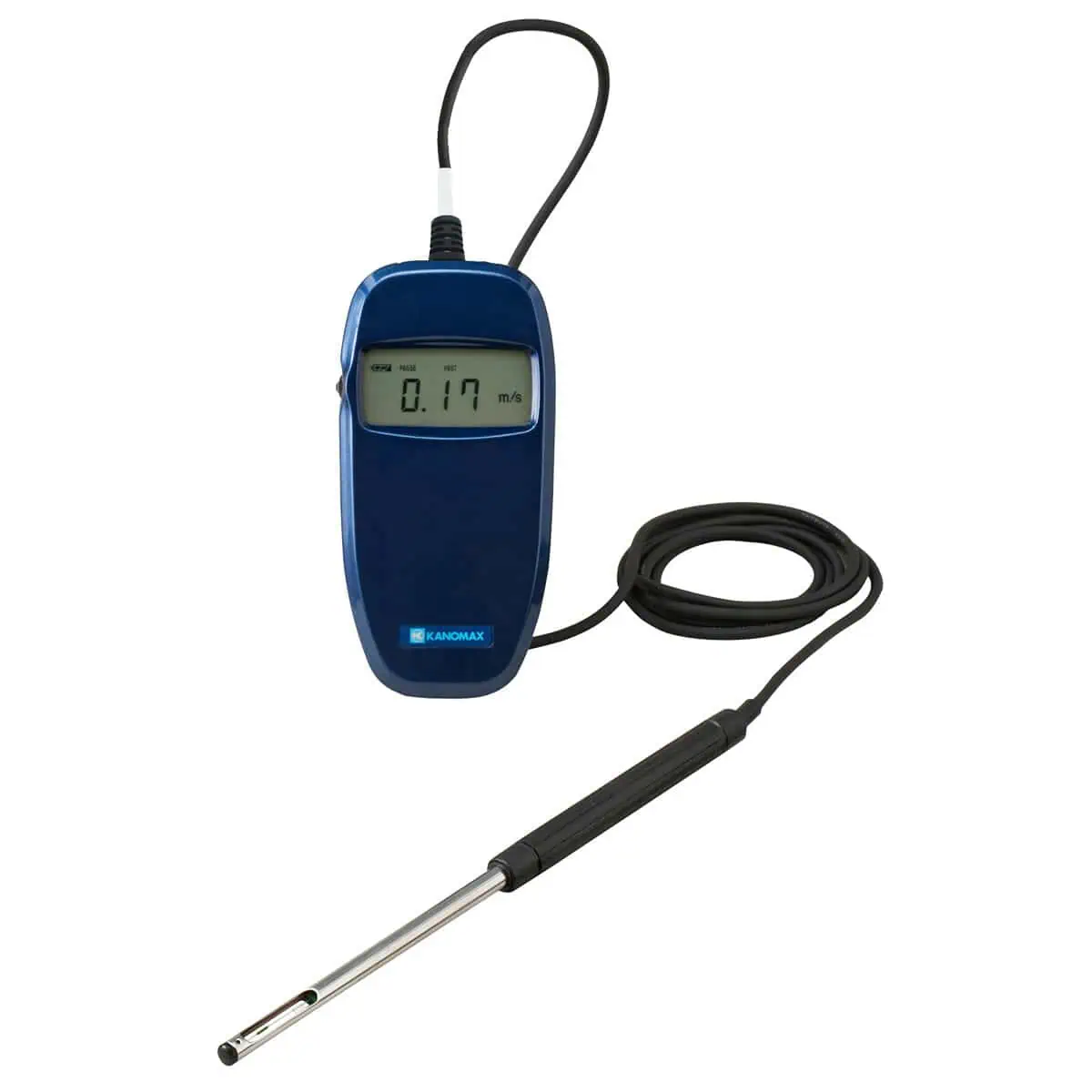

The Anemomaster™ LITE – Model 6006-DE is a palm size and feather weight anemometer, and is a standard quick-check instrument for HVAC Testing applications. With its single button multi-function toggle switch gives users easy one-hand operation capabilities. It can read temperatures and hold readings to easily record data on a worksheet. While very compact, this unit is accurate to 5% of reading, giving professional readings at a low price.
More Information
Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.
- Palm size and feather weight is standard on this must-have quick-check instrument
- Single button multi-function toggle switch for easy one-hand operation
- Read temperature and hold reading to easily record data on a worksheet
- ±5% of READING accuracy
- Broad measurement range
- Temperature compensation circuit for high accuracy
- Display readings in both metric and imperial units
- Compact and lightweight
- Averages measurements over one or five seconds for air velocity
*Annual NIST TRACEABLE CALIBRATIONS are performed at our facility in ANDOVER, NJ
- HVAC Ventilation Testing and Balancing
- Laboratory Control
- Flow Hood Performance Testing
- IAQ Investigation
- Industrial Hygiene Quality Control
| Main Unit Specifications | |
|---|---|
| Measurement Specifications | |
| Air Velocity | |
| Range | 0.01 m/s to 20.0 m/s (2 FPM to 3940 FPM) |
| Accuracy | +/- 5% of READING or +/- 0.015 m/s whichever is greater |
| Resolution | 0.01 m/s (@ 0.01 to 9.99 m/s) 0.1 m/sec (@10.0 to 20.0 m/s) |
| Temperature | |
| Response Time | Less than 1 second at 196 FPM (1m/sec), 90% response |
| Range | +/-2°F (1°C) |
| Accuracy | +/- 1°F (+/- 0.5 °C) |
| Resolution | 0.2 F (0.1 C) |
| Response Time | Less than 30 seconds at 196 FPM (1 m/sec), 90% response |
| General Specifications | |
| Power Supply | 4 x AA batteries |
| Operating Environment | Main unit 41 to 104°F (5 to 40°C) Probe -4 to 158°F (-20 to 70°C) |
| Storage Environment | 14 to 122°F (-10 to 50°C) |
| Dimensions | Main unit 2.4″(60mm) x 4.7″(120mm) x 1.2″(30mm) Probe: 0.24″ or 0.40″(6 or 10mm) diameter x 7.9″(200mm) length. Probe cable: 0.13″(3.3mm) diameter x 59″(1,500mm) length. |
| Weight | 0.4 lbs (180 g) |
| Standards | CE-mark |
| Warranty | 2 year |
| What’s Included | Operation Manual, AA Batteries, Extension Rod, Carrying Case, NIST Certificate |
User Manual
Data Sheet - English
Data Sheet - Espanol
Application Note - Anemometer Selection Guide
Engineering Drawing
They measure the air speed by calculating how fast the probe sensor is being cooled by the airflow.
The principles behind all hot-wire anemometers may be the same, but the quality varies. Simply put, with our temperature compensation sensor, our Anemomaster LITE is highly accurate with an accuracy of +/- 5%. This is due to several factors: 1) We calibrate the temperature compensation sensor, as well as the velocity sensor. Other manufacturers only calibrate the velocity sensor. 2)We use special high-quality materials, like our platinum sensors, that increase accuracy. 3) Our manufacturing facility uses not 1, but 4 specialized wind tunnels to test and calibrate our anemometers. These wind tunnels include a low velocity tunnel, high tunnel velocity and a variable temperature wind tunnel. 4) We’ve been making anemometers for over 80 years. During that time we’ve perfected our knowledge and refined our manufacturing process to produce a research-grade instrument.
Yes, all our instruments come with a calibration certificate.
Kanomax recommends annual calibration to ensure accuracy.
You can measure clean air between -4 and 158°F (-20 to 70°C) in an environment with no visible condensation. (Please note: the temperature range given is for the probes).
No, these are thermal anemometers that generate heat when in operation; if you expose them to a flammable gas it could cause a fire or explosion. Corrosive or caustic gases, such a chlorine, will damage the sensor on contact. While it is possible to use the instrument in a non-flammable, non-caustic gases the instrument is not calibrated for these gases and it will not measure airflow accurately.
No. Unfortunately these options are built into the main unit and must be ordered with the unit. They cannot be added later.
Windows XP (32-bit only), Vista, Windows 7 and Windows 10. (Please Note: Anemomaster Professional comes with software. It is available as an option for the Climomaster.)
The unit ships in a hard carrying case and includes a meter with probe, 6 x AA batteries, and a NIST traceable calibration certificate.
