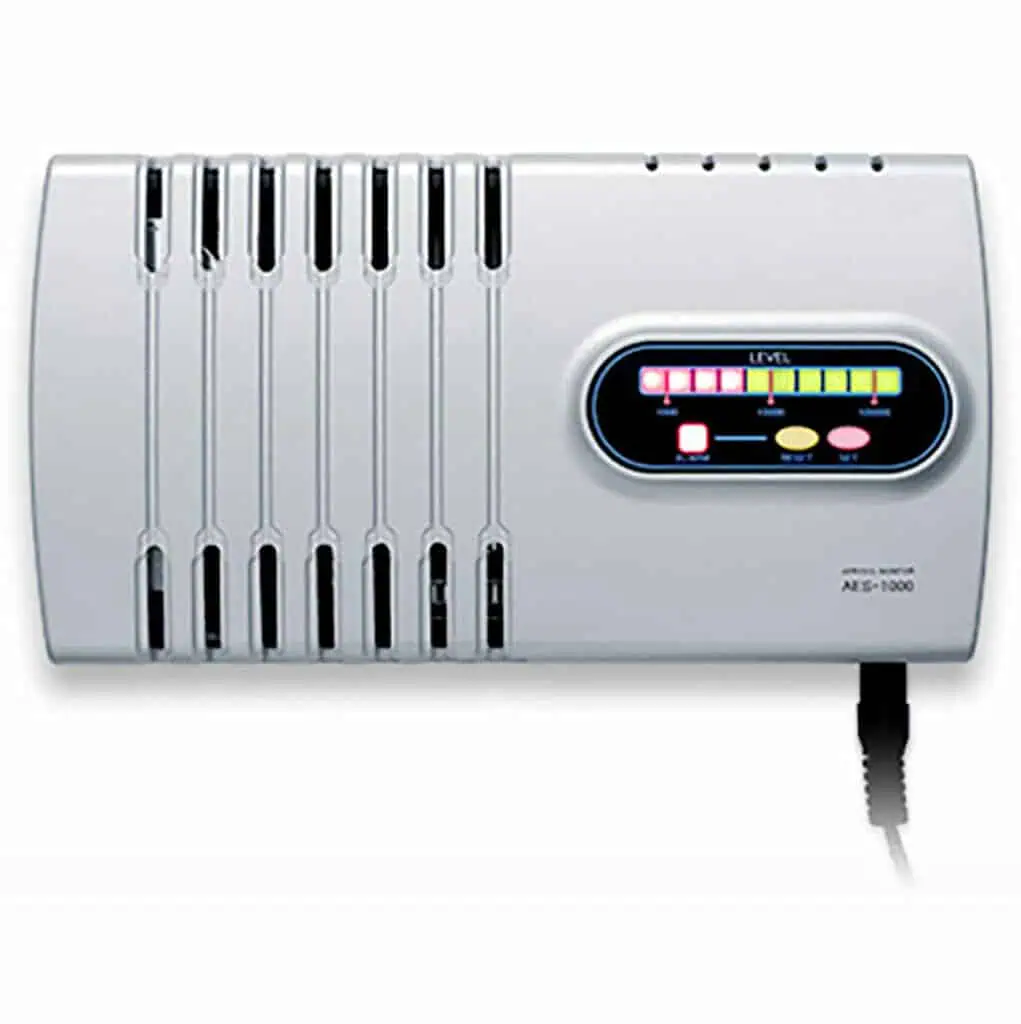

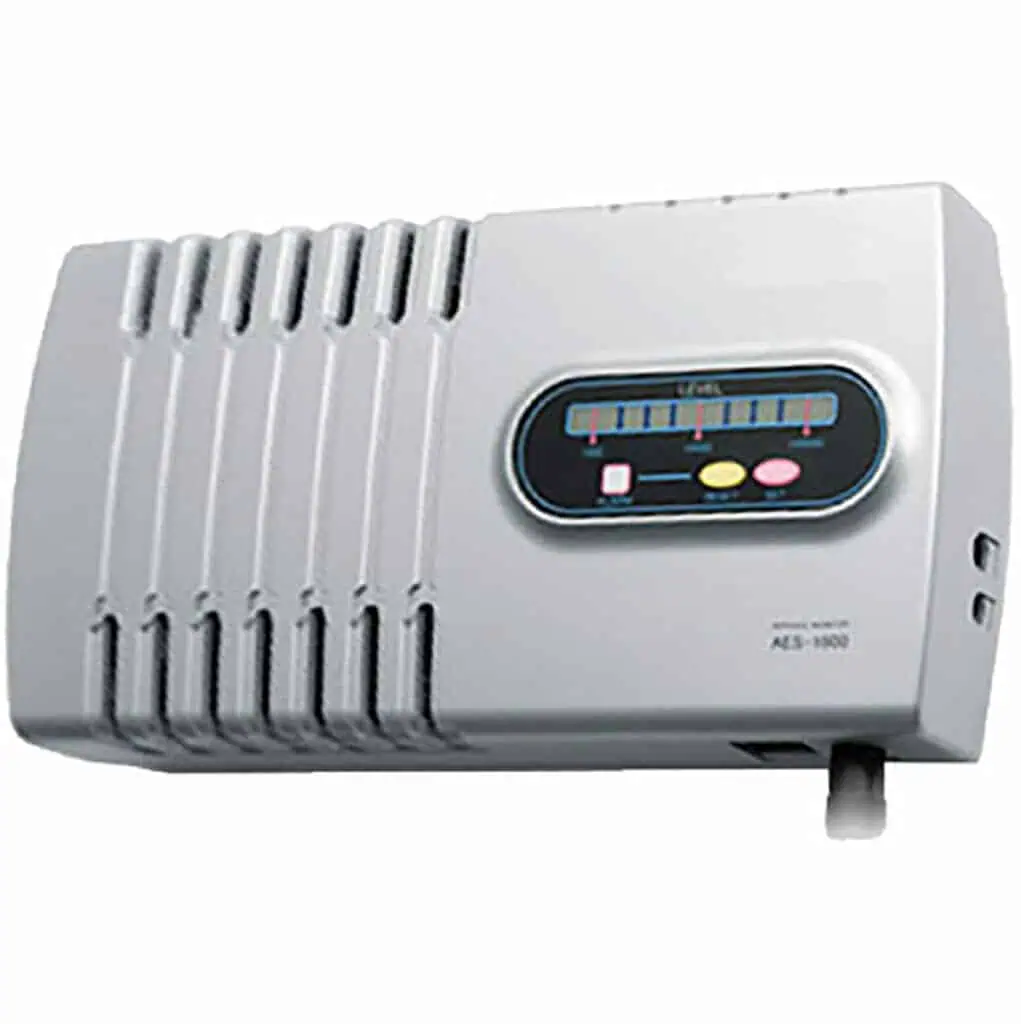

Aerosol Particle Monitor – Model AES-1000

Detect particulates of 0.5 microns and larger

The Kanomax Aerosol Particle Monitor features an easy-to-read display, can connect to a network via ethernet, and offers simplified monitoring of particulates at multiple locations.

It has applications including cleanroom monitoring and verification, semiconductor manufacturing, and food processing.

More Information

Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.

  • Stable and sensitive detection for Particulates of 0.5 microns and larger. Easy-to-read air cleanliness level, equivalent of ISO5 / Class 100 – ISO8 / Class 100,000.
  • Unique air sampling method using “heater” to generate updraft, preventing choked flow. Suction pump is not necessary.
  • Alarm comes on when the setting level goes beyond the required cleanliness, while monitor gives alarm signal output.
  • Link to Ethernet system with purpose of monitoring at multiple location.
  • Long life laser. 20,000 hours.
  • Compact and light, easy installation. Low cost.
  • Monitor and verify cleanrooms/pharmaceutical/semiconductor/food industry
  • Buffer zero monitoring and management
  • IAQ investigation

Main Unit Specifications
Display10 x LED lights shows equivalent of Class 100 ~ Class 100,000
Detection methodLight Scattering
Min. Detectable Size0.5 µm
Air Sampling MethodUpdraft airflow generated by built-in heater enables air sampling of approx. 0.26 gal per minutes
Cleanliness ClassFrom level of equiv. of ISO5 / Class 100 ~ ISO8 / Class 100,000
Alarm DisplayAlarm LED light comes on when reaching to setting level
Alarm OutputTTL open collector output in sync with alarm display
InterfaceEthernet x 1 port
Power SupplyDC12 V +/-10% 500mA
Operating Condition0ºC~40ºC 30% RH~80% RH
Dimensions7.5 x 4.0 x 1.5 inches (192 x 102 x 37 mm)
Warranty1 year
Standard AccessoriesMeter, AC adapter, Mounting plate, Operation manual
