The Kanomax Multichannel Anemometer PRO – Model 1590 is the world’s most accurate and responsive multichannel anemometer. With accuracy and responsiveness that encompasses the entire air velocity range, including the breeze speed range, this instrument provides the highest level of accuracy in the world. Multipoint measurement on up to 144 channels is realized with the industry’s smallest level miniature probe, high heat resistance, and temperature measurement. Due to the high portability of the main unit and the enhanced interface, this unit provides simultaneous measurement of multiple points in a shorter time, more easily, and ease of use.
Read MoreMore Information
Navigate the tab section below to see this product’s Features & Benefits, Specifications, Resources, and more.
- 15 types of compatible probes for various applications
- The smallest class probes in the industry
- High heat resistance enables precise measurement even in tough environments
- Large-scale system configuration with up to 144 channels available
- Easily measure in large-scale spaces
- Highly portable main body makes it easy to use in vehicles
- Improved probe response and accuracy, micro air velocity limit of 0.01 m/s
- Support analog output via optional Analog Unit - Model 1592-00
- Windows measurement software simultaneously measures air velocity, temperature, and humidity via the real-time graph display. Measurement data is saved in text format and can be easily imported into table measurement software such as Excel
- Thermal management of automobile electronic control unit (ECU)
- Electronic component heat evaluation
- Indoor airflow management for semiconductor manufacturing equipment
- Data center thermal management
Main Unit Specifications
| Product | Multi-Channel Anemomaster PRO Main Unit | ||
|---|---|---|---|
| Model | 1590-00 | ||
| Display, Operation | 7-inch color LCD with touch panel | ||
| Communication Function | Data | USB Type-A: For USB memory | |
| Remote Measurement | Modbus (Ethernet, USB Serial) | ||
| Between Units | RS485 (Standard cable) | ||
| Recording Media | Medium | Built-in memory | |
| Format | CSV format | ||
| Recording Capacity | 8GB (One hub unit can measure 1000 sampling times, about 24500 times). | ||
| External Trigger Input | Pin jack terminal Φ2.5 audio jack (Edge detection at start) | ||
| Language | Japanese, English, Chinese | ||
| Power Supply | DC12 to 24V (Select either one of 3 options below) 1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable |
||
| Power Consumption | Up to 50W | ||
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | ||
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) |
||
| Dimensions | W220mm × D130mm × H40mm | ||
| Weight | 0.6 kg | ||
| Standard Accessories | AC Adapter (90W), Software (CD), Operation manual, USB cable, Rubber cap | ||
| Warranty | 1 year | ||

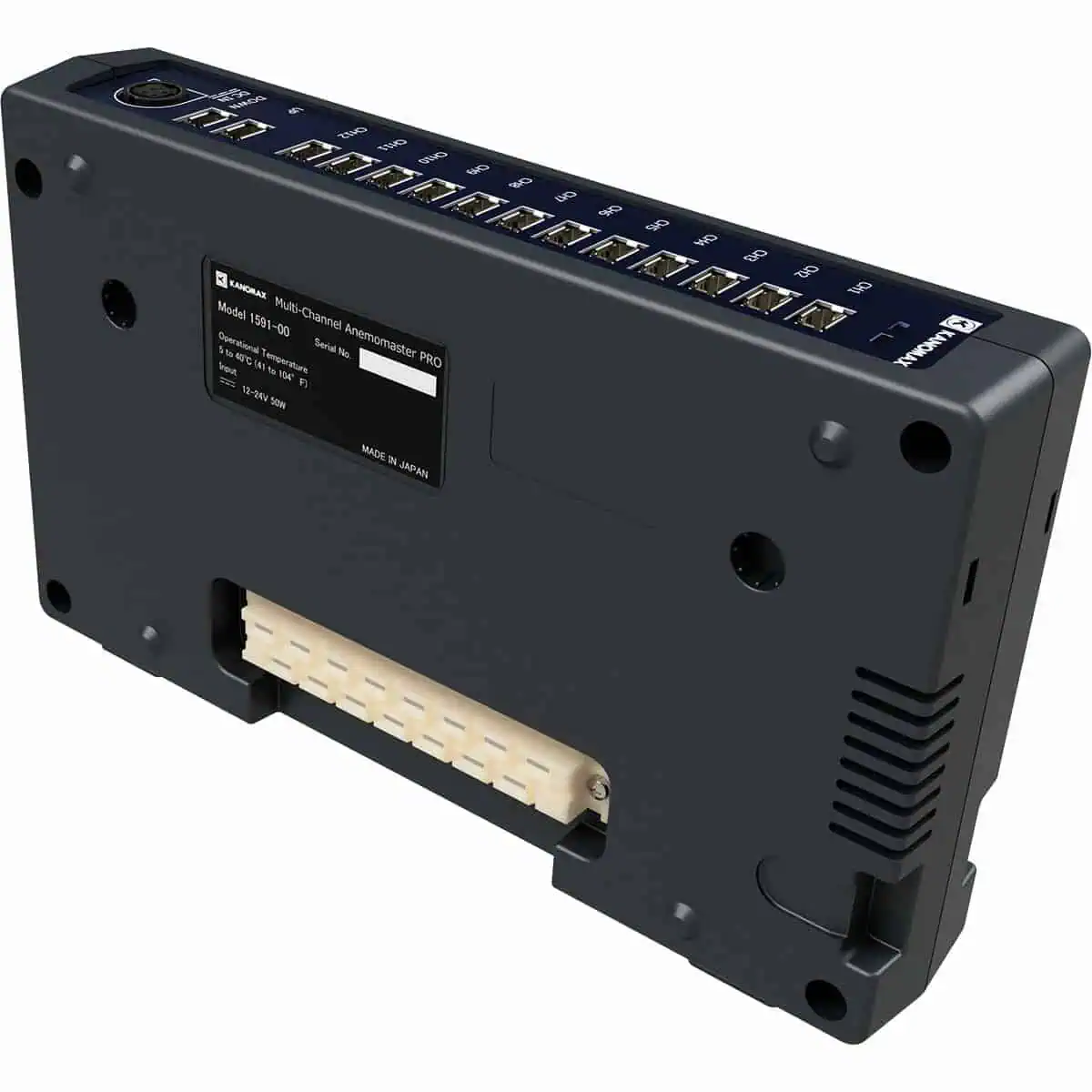

Hub Unit Specifications
| Product | Multi-Channel Anemomaster HUB Unit | ||
|---|---|---|---|
| Model | 1591-00 | ||
| Number of Channels | 12ch | ||
| Communication Function | Between Probes | Serial communication (standard cable) | |
| Between Probes | Serial communication (standard cable, connector) | ||
| Between Probes | RS485 (Standard cable) | ||
| Power Supply | DC12 ～ 24V | ||
| Power Consumption | Power supply conforms to the main unit | ||
| Dimensions | W220mm × D130mm × H40mm | ||
| Weight | 0.5 kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs) | ||
| Warranty | 1 year | ||
Analog Unit Specifications
| Product | Analog Unit | ||
|---|---|---|---|
| Model | 1592-00 | ||
| Number of Channels | 12 | ||
| Communication Function | Between units | Serial communication {connector} | |
| Analog Output | Voltage output | Range | 0 ～ 5 V |
| Output resistance | 1 kΩ | ||
| Current output | Range | 4 ～20 mA | |
| Load resistance | 250 Ω | ||
| Power Supply | DC12 to 24V (Select either one of 3 options below) 1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable |
||
| Power Consumption | 10W | ||
| Operating Environment | 5~40℃, 0~85% RH (No Condensation) | ||
| Storage Environment | -10~60℃, 0~90% RH (No Condensation) | ||
| Size | W220mm × D130mm × H40ｍｍ | ||
| Weight | 0.5kg | ||
| Standard Accessories | Setup guide, Connecting clips (2pcs), Rubber cap (2pcs), Terminal block (3pcs) | ||
| Warranty | 1 year | ||
Probe Specifications
| Model Number | Measurement Target | Directivity | Air Velocity | Wind Temperature | Humidity | Operating Temperature | Temperature Compensation Sensor |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Measurement Range | Measurement Accuracy | Responsivity | Measurement Range | Measurement Accuracy | Measurement Range | Measurement Accuracy | |||||
| 0972-00 0973-00 | Wind Speed | Yes | 0.01~50.0m/s | The larger of ± 2% or ± 0.02 m/s of the displayed value | 1 Second | ー | ー | ー | ー | 0-100℃ | ± 5% of displayed value at 0-100 ℃ |
| 0975-00 | No | 0.01~25.0m/s | 3 Seconds | ||||||||
| 0975-09 0975-10 | 0.01~50.0m/s | ||||||||||
| ± 5% of displayed value at 0-120 ℃ |
|||||||||||
| 0976-03 0976-04 0976-07 | 0.01~30.0m/s | The larger of ± 3% or ± 0.02 m / s of the displayed value | 0-120℃ | ||||||||
| 0976-13 0976-14 0976-17 | The larger of ± 2% or ± 0.02 m/s of the displayed value | 0-100℃ | ± 5% of displayed value at 0-100 ℃ |
||||||||
| 0976-05 | Air Velocity and Temperature | The larger of ± 3% or ± 0.02 m/s of the displayed value | 0～120℃ | ±0.5% | 0-120℃ | ± 5% of displayed value at 0-120 ℃ |
|||||
| 0976-15 | 0～100℃ | 0-100℃ | ± 5% of displayed value at 0-100 ℃ |
||||||||
| 0975-21 | The larger of ± 2% or ± 0.02 m/s of the displayed value |
||||||||||
| 0975-31 | Air Velocity, Temperature and Humidity | 0.01~25.0m/s | 0～60℃ | 5～95%RH | 5～80% RH：3% RH 80～90% RH：5% RH |
||||||
- Flat Probe (V) - Model 0972-00
- Uni-Directional Probe (V) - Model 0973-00
- Needle Probe (V) - Model 0975-00
- Needle Probe (V) - Model 0975-09
- Long Needle Probe (V) - Model 0975-10
- Spherical Probe (V) - Model 0976-03
- Spherical Angled Probe (V) - Model 0976-04
- Mini Probe (V/T) - Model 0976-05
- Mini Probe (V) - Model 0976-07
- Spherical Probe (V) - Model 0976-13
- Spherical Angled Probe (V) - Model 0976-14
- Mini Probe (V/T) - Model 0976-15
- Mini Probe (V) - Model 0976-17
- Needle Probe (V/T) - Model 0975-21
- Probe (V/T/H) - Model 0975-31
- Spare AC Adaptor - Model 1580-10
- DC Power Connection - Model 1580-37
- Probe Fixture Jig Pack (20pcs.; compatible w/ 0976-03/0976-04 and 0976-13/0976-14) - Model 1580-90
- Double Coated Tape (for 0976 probes) - Model 1590-92
- Standard Cable (0.5m) - 1580-30
- Standard Cable (2m) - 1580-31
- Standard Cable (5m) - 1580-32
- Standard Cable (10m) - 1580-33
- Standard Cable (20m) - 1580-34
- Standard Cable (40m) - 1580-35
Introducing Next Gen Kanomax Airflow Transducers and Multi-Channel Anemometers
Getting Started with Kanomax Multi-Channel Anemometers
How do hot-wire anemometers measure air velocity?
They measure the air speed by calculating how fast the probe sensor is being cooled by the airflow.
Does the unit come with an NIST traceable certificate?
Yes, all our instruments come with a calibration certificate.
How often does the unit need to be calibrated?
Annual calibration is recommended to ensure accuracy. However, this can vary based on how often the anemometer is used and the environments it’s used in. Also, some companies have an SOP in place that specifies how often the instrument will need to be serviced. More specifically, regulatory compliance may dictate the calibration interval.
What kinds of airflow can I measure with my Kanomax anemometer?
You can measure clean air between -4 and 158°F (-20 to 70°C) in an environment with no visible condensation. (Please note: the temperature range given is for the probes)
Can I measure airflow in flammable and corrosive gases?
No, these are thermal anemometers that generate heat when in operation; if you expose them to a flammable gas it could cause a fire or explosion. Corrosive or caustic gases, such a chlorine, will damage the sensor on contact. While it is possible to use the instrument in a non-flammable, non-caustic gases the instrument is not calibrated for these gases and it will not measure airflow accurately.
What multi-channel options are available from Kanomax?
We have three multi-channel anemometers: The 1570 is a 4-channel anemometer that just measure air velocity. The 1550 and 1560 have more channels (16 and 6 respectively) and can also measure temperature and relative humidity. These two units can be operated in a cascade configuration where multiple units can be chained together to create more channels.
How do I order a multi-channel system?
These systems are designed for flexibility so you can buy exactly what you need for your specific application. The 4-channel 1570 is easy to order as it requires only the main unit and then whichever probes and cables suit your application. The 1550 and 1560 are a bit more complex as these instruments are composed of the chassis, modules, cables and probes. Each probe must have the correct corresponding module installed in the chassis to plug into. We suggest calling your distributor or Kanomax to get assistance with ordering these systems.
